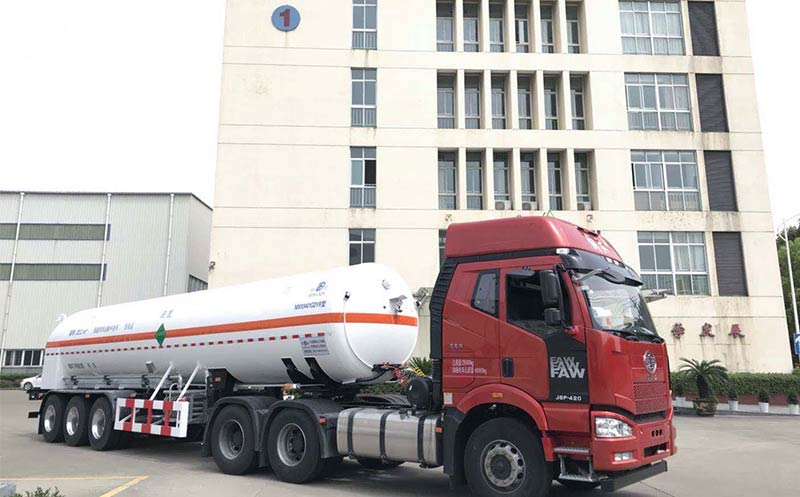

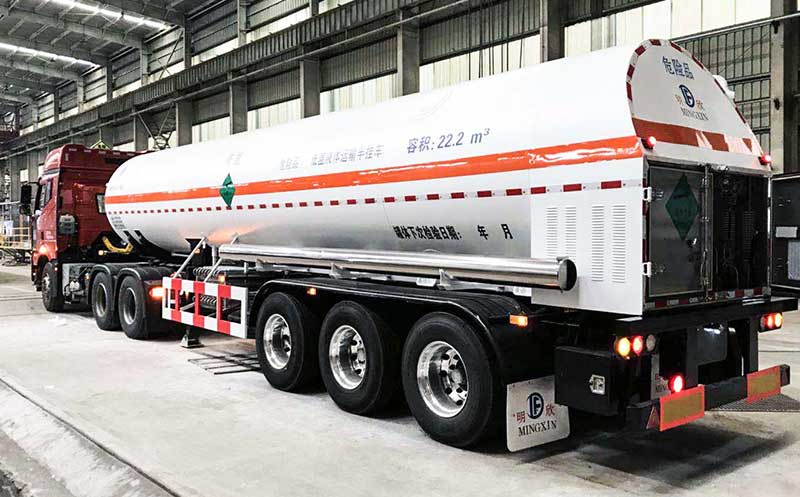

| Main technical specification for LNG tanker & semi-trailer | |||
| Model | NMX5180GDYG | NMX5311GDYG | NMX9401GDYG |
| Isolation type | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated |
| Storage medium | LNG | LNG | LNG |
| Design temperature | -196 | -196 | -196 |
| Working pressure | 1.6MPa | 1.55MPa | 0.65MPa |
| Maximum design load mass | 5745Kg | 11125Kg | 25050Kg |
| Maximun design total mass | 18000Kg | 31000Kg | 40000Kg |
| Geometric volume | 16m3 | 27.8m3 | 52.6m3 |
| Engine rated power | 140KW | 215KW | / |
| Maximum design drawing quality | / | / | ≥40000Kg |
| Curb weight | 12060Kg | 19745Kg | 14950Kg |
| Vehicle type | Truck | Truck | Triaxial Trailer |
| Dimensions（L×W×H） | 8720×2500×3600mm | 11980×2500×3800mm | 13200×2540×4000mm |
| Brand of chassis | DongFeng | DongFeng | / |
