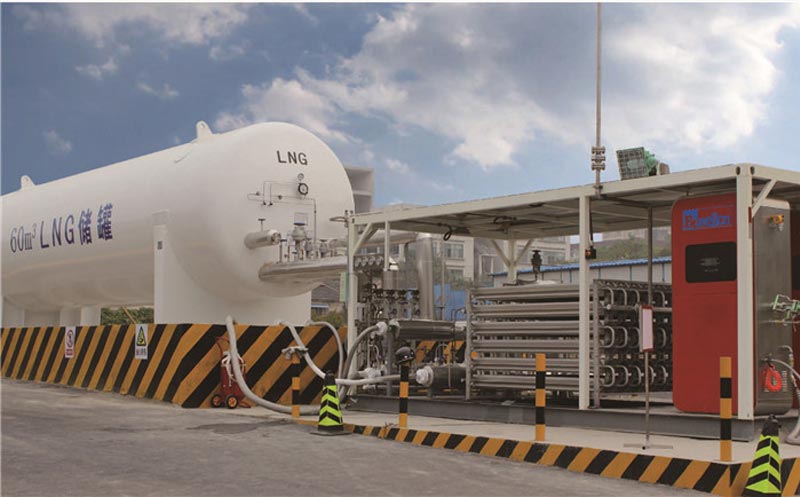

1. MINGXIN Product includes LNG filling station and L-CNG filling station.
2. The tank capacity: 30m3 and 60m3 or user requirement.
3. Tank design pressure: 1.2Mpa.
4. MINGXIN product certificate: GB, ASME, CE.
| NG,L-CNG Filling Station | |||||||
| Parameter | Station Type | Mini LNG Filling Station | Mini L-CNG Filling Station | ||||
| Main Technical Summary | Daily Filling Capacity (Nm3) | 8000〜15000 | 8000 〜20000 | ||||
| LNG Storage Capacity (m3) | 1x60 | 1x60 | |||||
| Tank Pressure(MPa) | 1.44 | 0.88 OR1.44 | |||||
| System Pressure (MPa) | 2 | 27.5 | |||||
| Power (KW) | 15〜30 | 25〜50 | |||||
| Gas metering accuracy (％) | 1 | 0.5 | |||||
| Main Equipments | Tank Quantity (Set) | 1〜2 | 1〜2 | ||||
| Dispenser (Set) | 1〜2 | 1〜2 | |||||
| Pump (Set) | 1〜2 (Immersed Pump） | 1〜2 (Plunger Pump） | |||||
| Control System | PLC | ||||||
| SIA System | Flammable gases alarm interlock ESD protection system | ||||||
