| Model | NMX5100GDYY | NMX5180GDYN | NMX5180GDYY | NMX5250GDYY | NMX5250GDYN | NMX5310GDYN | NMX5310GDYY | NMX5311GDYR | NMX9400GDYN | NMX9400GDYR | NMX9400GDYY | NMX9401GDYN | NMX9401GDYR | NMX9401GDYY |
| Isolation type | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated | High-vacuum multi-layer isolated |
| Storage medium | LO2 | LN2 | LO2 | LO2 | LN2 | LN2 | LO2 | LAr | LN2 | LAr | LO2 | LN2 | LAr | LO2 |
| Design temperature | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 | -196 |
| Working pressure | 2.4MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.6MPa | 1.5MPa | 1.45MPa | 1.6MPa | 1.1MPa | 1.3MPa | 1.2MPa | 1.6MPa | 1.6MPa | 1.6MPa |
| Maximum design load mass | 3420Kg | 7355Kg | 8055Kg | 11290Kg | 10610Kg | 15070Kg | 16070Kg | 15670Kg | 25180Kg | 26735Kg | 26785Kg | 25090Kg | 27500Kg | 27010Kg |
| Maximun design total mass | 9525Kg | 18000Kg | 18000Kg | 25000Kg | 25000Kg | 31000Kg | 31000Kg | 31000Kg | 40000Kg | 39635Kg | 40000Kg | 40000Kg | 40000Kg | 40000Kg |
| Geometric volume | 3.26m3 | 11.6m3 | 8.7m3 | 10.9m3 | 14.8m3 | 19.8m3 | 14.9m3 | 13m3 | 34.18m3 | 21.85m3 | 25.42m3 | 33.2m3 | 22.2m3 | 25.5m3 |
| Engine rated power | 105KW | 140KW | 140KW | 180KW | 180KW | 248KW | 248KW | 248KW | / | / | / | / | / | / |
| Maximum design drawing quality | / | / | / | / | / | / | / | / | ≥40000Kg | ≥40000Kg | ≥40000Kg | ≥40000Kg | ≥40000Kg | ≥40000Kg |
| Curb weight | 5910Kg | 10450Kg | 9750Kg | 13580Kg | 14260Kg | 15800Kg | 14800Kg | 15200Kg | 14820Kg | 12900Kg | 13215Kg | 14910Kg | 12500Kg | 12990Kg |

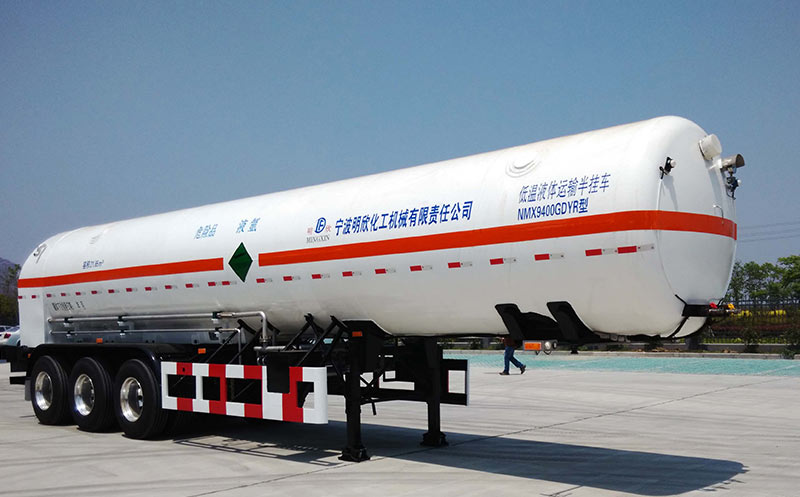

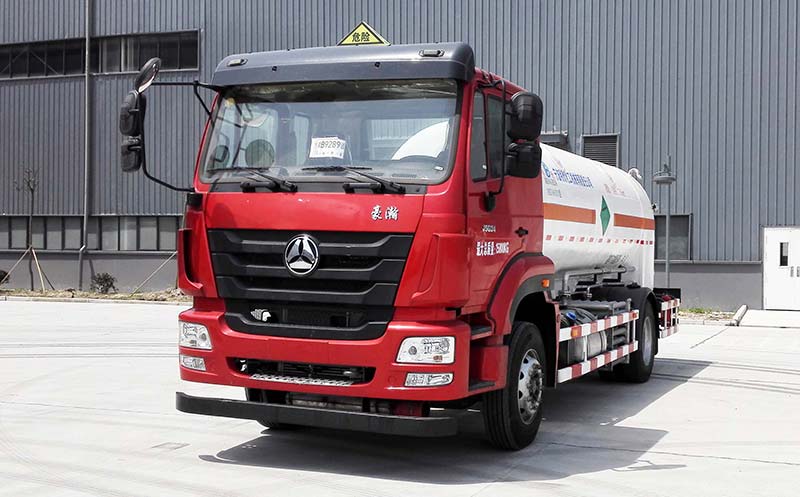

| Vehicle type | Truck | Truck | Truck | Truck | Truck | Truck | Truck | Truck | Triaxial Trailer | Triaxial Trailer | Triaxial Trailer | Triaxial Trailer | Triaxial Trailer | Triaxial Trailer |
| Dimensions（L×W×H） | 6830×2110×2450mm | 8860×2500×3210mm | 8555×2500×3100mm | 9770×2500×3370mm | 9700×2500×3370mm | 11200×2500×3570mm | 11400×2500×3570mm | 11500×2500×3570mm | 12000×2500×3700mm | 11935×2500×3300mm | 11650×2500×3540mm | 11810×2500×3650mm | 11750×2500×3320mm | 11680×2500×3450mm |
| Brand of chassis | DongFeng | DongFeng | DongFeng | DongFeng | DongFeng |
