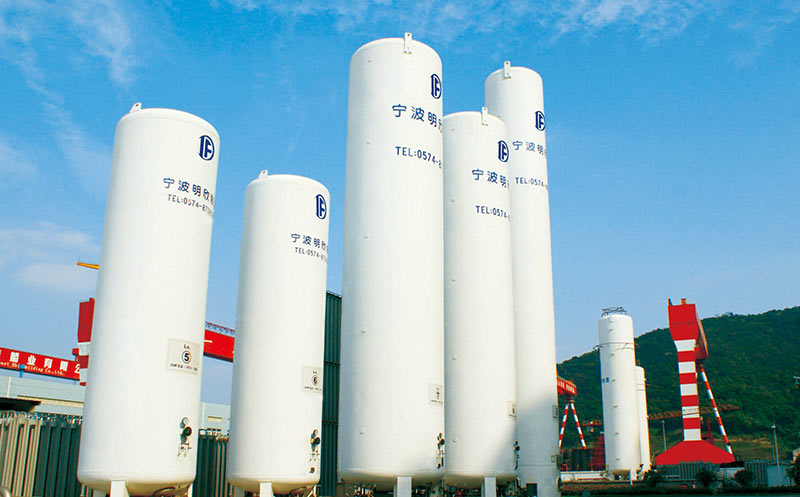

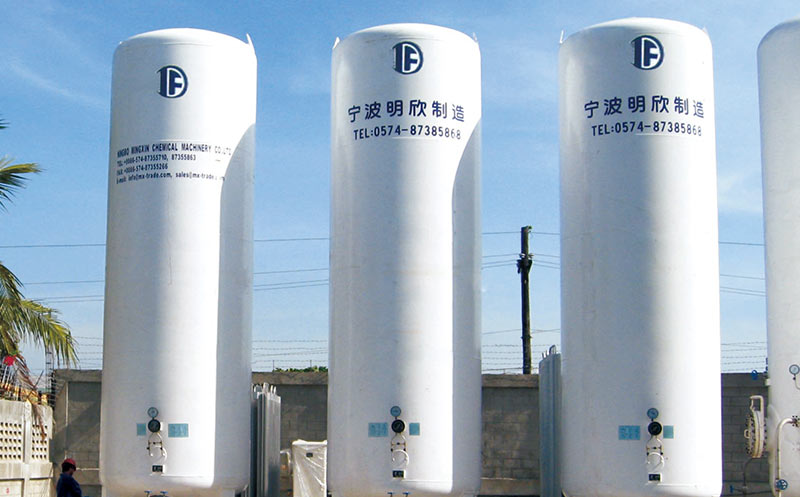

1. MINGXIN Cryogenic Storage Tank include: liquid oxygen tank, liquid nitrogen tank, liquid argon tank, liquid Nitrous Oxide tank, liquid carbon dioxide tank, LNG tank.
2. Tank capacity: 2M3~350M3.
3. Tank pressure: 8bar, 16bar or based on user requirement.
4. MINGXIN product certificate: GB, ASME, CE
5. Type: Vertical/Horizontal
6. Insulating mode: vacuum perlite powder and super vacuum multi-layer
1. MINGXIN Cryogenic Storage Tank include: liquid oxygen tank, liquid nitrogen tank, liquid argon tank, liquid Nitrous Oxide tank, liquid carbon dioxide tank, LNG tank.
2. Tank capacity: 2M3~350M3.
3. Tank pressure: 8bar, 16bar or based on user requirement.
4. MINGXIN product certificate: GB, ASME, CE
5. Type: Vertical/Horizontal
6. Insulating mode: vacuum perlite powder and super vacuum multi-layer
We use of new material which is strength stainless steel in order to reduce the self weight of tank and raise the efficiency, also we provide non-standard size design service for clients. Our tanks are widely used in gas, chemical, machinery, metallurgy, medical, nuclear power and other industries.
1.1. Regular mode of Cryogenic Liquid Storage Tank for LOX/LAR/LIN:
| Mode | Vol M3 | Working pressure MPa | evaporation per day %/d | Weight Kg | Size(mm) | ||
| LO2 | LN2 | Lar | |||||
| CFL-2/0.8 | 2 | 0.8 | ≤0.67 | ≤1.0 | ≤0.7 | 2530 | Φ1912×3295 |
| CFL-3/0.8 | 3 | 0.8 | ≤0.6 | ≤0.900 | ≤0.630 | 2972 | Φ1912×3948 |
| CFL-5/0.8 | 5 | 0.8 | ≤0.435 | ≤0.650 | ≤0.460 | 3862 | Φ1912×5196 |
| CFL-5/1.6 | 1.6 | 4813 | Φ1912×5740 | ||||
| CFL-10/0.8 | 10 | 0.8 | ≤0.360 | ≤0.550 | ≤0.380 | 6500 | Φ2216×6600 |
| CFL-10/1.6 | 1.6 | 6500 | Φ2216×6600 | ||||
| CFL-15/0.8 | 15 | 0.8 | ≤0.350 | ≤0.530 | ≤0.370 | 8450 | Φ2316×8166 |
| CFL-15/1.6 | 1.6 | 9020 | Φ2316×8166 | ||||
| CFL-20/0.8 | 20 | 0.8 | ≤0.330 | ≤0.500 | ≤0.350 | 10240 | Φ2216×11558 |
| CFL-20/1.6 | 1.6 | 10240 | Φ2216×11558 | ||||
| CFL-30/0.8 | 30 | 0.8 | ≤0.290 | ≤0.440 | ≤0.310 | 13770 | Φ2616×11128 |
| CFL-30/1.6 | 1.6 | ≤0.290 | ≤0.440 | ≤0.310 | 14812 | Φ2616×11128 | |
| CFL-50/0.8 | 50 | 0.8 | ≤0.23 | ≤0.35 | ≤0.240 | 21299 | Φ3020×12818 |
| CFL-50/1.6 | 1.6 | ≤0.23 | ≤0.35 | ≤0.240 | 23889 | Φ3020×12818 | |
| CFL-100/0.8 | 100 | 0.8 | ≤0.160 | ≤0.250 | ≤0.170 | 41900 | Φ3520×16887 |
1.2. Regular mode of Cryogenic Liquid Storage Tank for LNG:
| Mode | Vol M3 | Working pressure MPa | evaporation per day %/d | Weight Kg | Size(mm) |
| CFL-30/0.6 | 30 | 0.6 | ≤0.45 | 14370 | Φ2616×10991 |
| CFL-30/0.8 | 30 | 0.8 | ≤0.45 | 15350 | Φ2616×10991 |
| CFL-50/0.6 | 50 | 0.6 | ≤0.35 | 21760 | Φ3020×12657 |
| CFL-50/0.8 | 50 | 0.8 | ≤0.35 | 23120 | Φ3020×12657 |
| CFL-100/0.6 | 100 | 0.6 | ≤0.25 | 37480 | Φ3520×16887 |
| CFL-100/0.8 | 100 | 0.8 | ≤0.25 | 40330 | Φ3520×16887 |
| CFL-150/0.6 | 150 | 0.6 | ≤0.225 | 52110 | Φ3700×21600 |
| CFL-150/0.8 | 150 | 0.8 | ≤0.225 | 61400 | Φ2416×7450 |
1.3. Regular mode of Cryogenic Liquid Storage Tank for LCO2:
| Mode | Vol M3 | Working pressure MPa | Static pressure rise KPa/d | Weight Kg | Size(mm) | ||||||
| CFL-10/2.2 | 10 | 2.2 | ≤35 | 8144 | Φ2116×6900 | ||||||
| CFL-15/2.2 | 15 | 2.2 | ≤35 | 11100 | Φ2116×9500 | ||||||
| CFL-20/2.2 | 20 | 2.2 | ≤35 | 13350 | Φ2316×9922 | ||||||
| CFL-30/2.2 | 30 | 2.2 | ≤20 | 19631 | Φ2820×9600 | ||||||
| CFL-50/2.2 | 50 | 2.2 | ≤20 | 30590 | Φ3020×12860 | ||||||
| CFL-100/2.2 | 100 | 2.2 | ≤20 | 53995 | Φ3520×17047 |
